Name: TED EV 3x6 - NYY-2 PAIR DATA 50M DRUM
SKU: TED36-NYYJ-50M
Price: 247.50 GBP
Availability: InStock

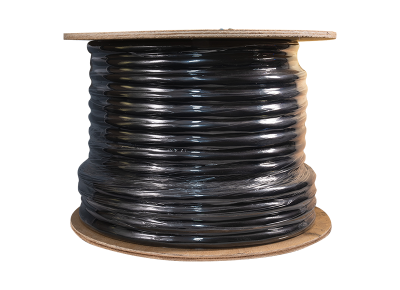

TED EV 3×6 – NYY-2 PAIR DATA 50M DRUM

£ 247.50 / Drum

Specially Developed to meet the requirements of EV charge points with data connectivity

This cable is designed for use in the installation of electric vehicle charge points. The cable incorporates power conductors and a 4 core-screened data cable, encapsulated in a double-sheathed design for extra protection. Whilst designed for use in electric vehicle charge points, the cable is also suitable for other installations where power and a 4-core data/signal cable is required.

SKU: TED36-NYYJ-50M Category: Cable

Features
Additional Information
Downloads

Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228
Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3
Bedding: Compatible Polymeric Material (PVC)
Sheathing: Tuff Heat Resisting PVC Compound (DCC05/DCC07)
Energy Monitor Cable: 4-core screened energy monitor cable

These cables are designed to be installed in air, clipped to the surface, on cable tray/ladder work, and embedded in concrete. The cables can be laid direct in the ground providing that suitable mechanical protection is in place.
